Straight connecting piece (HPP-F)

Fotka Straight connecting piece (HPP-F)

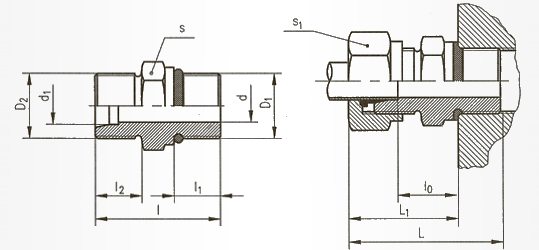

STRAIGHT CONNECTING PIECE WITH S CONNECTING METRIC AND BSP THREAD SEALING – “O” RING – FORM F, DIN 3852

Order: HRDLO HPP 06 1215/1215-F (Body)

Order: KOMPLET HPP 06 1215/1215-F (Sealing (body + nut + cutting ring + “o” ring )

Important!

Assortment produced and delivered only on order.

* = Admissible working pressure MPa

Tube O.D. d₁	závit		d	I₁	I	I₀	L	L₁	s h11	s₁ h11	MPa*	Trade description
Tube O.D. d₁	D₁	D₂	d	I₁	I	I₀	L	L₁	s h11	s₁ h11	MPa*	Trade description
6	M 12×1,5	M 12×1,5	5	12	29	12	40	30	17	14	64	HPP 06 1215/1215-F
8	M 12×1,5	M 14×1,5	6	12	31	14	42	31	17	17	64	HPP 08 1215/1415-F
10	M 14×1,5	M 16×1,5	7	12	31	14	42	31	19	12	64	HPP 10 1415/1615-F
12	M 16×1,5	M 18×1,5	9	12	32	17	48	36	22	22	50	HPP 12 1615/1815-F
15	M 18×1,5	M 22×1,5	11	12	32	17	48	36	24	27	40	HPP 15 1815/2215-F
16	M 18×1,5	M 22×1,5	12	12	32	18	52	38	24	27	40	HPP 16 1815/2215-F
16	M 22×1,5	M 24×1,5	12	12	33	19	54	40	27	30	40	HPP 16 2215/2415-F
22	M 27×2	M 30×2	18	16	40	21	60	44	32	36	25	HPP 22 2720/3020-F

Tube O.D. d₁	závit		d	I₁	I	I₀	L	L₁	s h11	s₁ h11	MPa*	Trade description
Tube O.D. d₁	D₁	D₂	d	I₁	I	I₀	L	L₁	s h11	s₁ h11	MPa*	Trade description
4	G 1/8″	M 10×1	4	8	23	10	30	24	14	12	64	HPP 04 1/8″/1010-F
6	G 1/4″	M 12×1,5	5	10	30	13	40	30	17	14	50	HPP 06 1/4″/1215-F
8	G 1/4″	M 14×1,5	6	10	32	15	42	32	17	17	50	HPP 08 1/4″/1415-F
10	G 3/8″	M 16×1,5	8	12	35	16	46	35	22	19	50	HPP 10 3/8″/1615-F
12	G 3/8″	M 18×1,5	9	12	36	17	48	36	22	22	40	HPP 12 3/8″/1815-F
15	G 1/2″	M 22×1,5	12	15	40	18	52	38	27	27	40	HPP 15 1/2″/2215-F
22	G 3/4″	M 30×2	18	16	40	21	60	44	32	36	25	HPP 22 3/4″/3020-F
