angular Connecting piece “L”
ANGULAR CONNECTING PIECE “L” (SH 15 , SH15-A)
Order: HRDLO SH 15 ( body)
Order: HRDLO SH 15 – A (Adjustable body (body + nut + sealing ring))
a
| D1 | D2 | d | I1 | I2 | I3 | I4 | s | Trade description |
|---|---|---|---|---|---|---|---|---|
| M 22×1,5 | M 22×1,5 | 12 | 25 | 48 | 36 | 12 | 24 | SH 15 / SH 15-A |

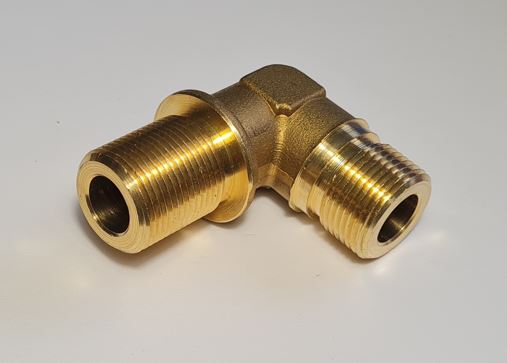

ANGULAR CONNECTING PIECE “L”
Order: HRDLO SH 15 – B ( Body)
| D1 | D2 | d | I1 | I2 | I3 | I4 | s | Trade description |
|---|---|---|---|---|---|---|---|---|
| M 22×1,5 | M 22×1,5 | 12 | 25 | 48 | 36 | 12 | 24 | SH 15-B |
